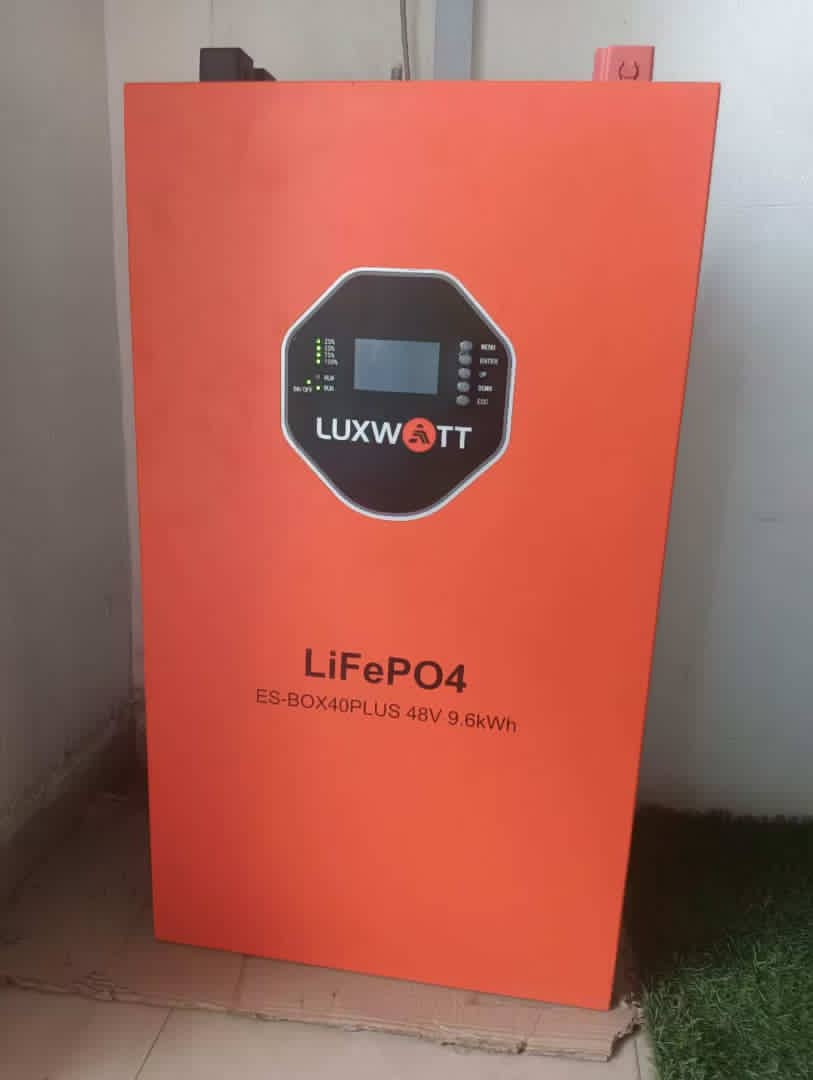

Luxwatt 48V 9.6kWh LiFePO4 Lithium Battery
The Luxwatt 48V 9.6kWh is a powerful, high-capacity lithium iron phosphate battery engineered for demanding solar energy storage, off-grid living, and commercial backup power applications.
Key Specifications:
- Energy Capacity: 9.6kWh (9600Wh)
- Nominal Voltage: 48V
- Battery Chemistry: Premium Grade A LiFePO4 (Lithium Iron Phosphate)
- Cycle Life: 6000+ cycles at 80% Depth of Discharge (DoD)
- Continuous Discharge Current: Up to 150A–200A (depending on model)
- Max Charge Current: 100A+
- Built-in BMS: Advanced 16S Battery Management System with multiple protections (overcharge, over-discharge, short circuit, over-current, over/under temperature)
- Display: High-quality LCD screen showing real-time SOC, voltage, current, temperature, and status
- Communication: RS485, CAN Bus (compatible with most inverters like Luxpower, Deye, Voltronic, Growatt, etc.)
- Design: Modern rack-mount or wall-mount design with heavy-duty handles
Main Features & Benefits:
Energy Capacity: 9.6kWh (9600Wh)Nominal Voltage: 48VBattery Chemistry: Premium Grade A LiFePO4 (Lithium Iron Phosphate)Cycle Life: 6000+ cycles at 80% Depth of Discharge (DoD)Continuous Discharge Current: Up to 150A–200A (depending on model)Max Charge Current: 100A+Built-in BMS: Advanced 16S Battery Management System with multiple protections (overcharge, over-discharge, short circuit, over-current, over/under temperature)Display: High-quality LCD screen showing real-time SOC, voltage, current, temperature, and statusCommunication: RS485, CAN Bus (compatible with most inverters like Luxpower, Deye, Voltronic, Growatt, etc.)
Design: Modern rack-mount or wall-mount design with heavy-duty handles
- Extremely safe and stable LiFePO4 chemistry – no risk of thermal runaway
- Excellent performance in wide temperature range (-20°C to 60°C)
- Fast charging capability
- Maintenance-free and zero emissions
- Lightweight compared to lead-acid equivalents
- Parallel connection support (expandable up to 100kWh+)
- Long lifespan – up to 10–15 years with proper use
